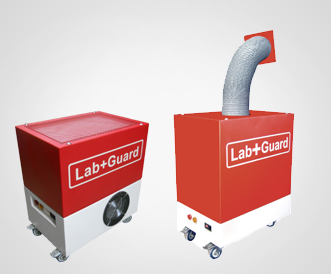

Fornax - Lab + Guard (LG 300 i & LG 300 p)

The Lab+Guard is developed to improve the laboratory air quality making it nearly equal to clean air. Thus replenishing and subsequently nourishing the entire laboratory, making it safe for the sensitive procedures to be executed. This is achieved by a number of inclusions and their applications all of which are simple, cost effective and user friendly.

The positive pressure system uses the basic principle of “Over Pressure or positive pressure in a room which restricts the entry of outside air”. This is achieved by absorbing the circulating air outside the IVF Lab (room) and then subsequently passing the same with positive

Fornax -  Lab + Guard (LG 300 i & LG 300 p)

pressure through of 4 stage filters which reduces the CFU count, eliminates the SPM, VOCs and CACs thus making it quite IVF friendly. Thus ultimately the effective circulating air in the IVF lab reaches near to a clean air status.

Lab + Guard system contains a unique 4 stage filtration system containing prefilter, Hepa filter and unique blend of activated carbon and alumina,which ensures wide variety of gases and particulate contaminants are oxidized or are absorbed

He unique design & concept of positive pressure system not only reduces VOC content in air but also the CFU count in IVF lab

Unique automatic indication system informs user as to when the filter needs to be changed

Lab guard pressuring Model gives possibility of fresh air intake and positive pressure in the IVF lab

Lab + Guard has Two Model- lab + Guard i (indoor) and lab + Guard p (pressurizing)

LG300i 100 120 VOLTS 60Hz

LG300i 220 240 VOLTS 50Hz

LG300p 100 120 VOLTS 60Hz

LG300p 220 240 VOLTS 50Hz


LAB+ guard unit (FX2046) Backware impellet type

Pre Filter: synthetic PU

Hepa Filter: Efficiency 99.97%@0.3 microns

Unit Capacity: 350 CFM

Recommended area: Maximum 300 Sq.Ft.

Filter Alarm: Automatic visual indication

VOC filter: Unique blend activated carbon and Alumina

Power Concumption: (0 Watts maximum

OPTIONAL: Filter replacement Spare Filter set ( all 4 stage filters) (FX 2047)
